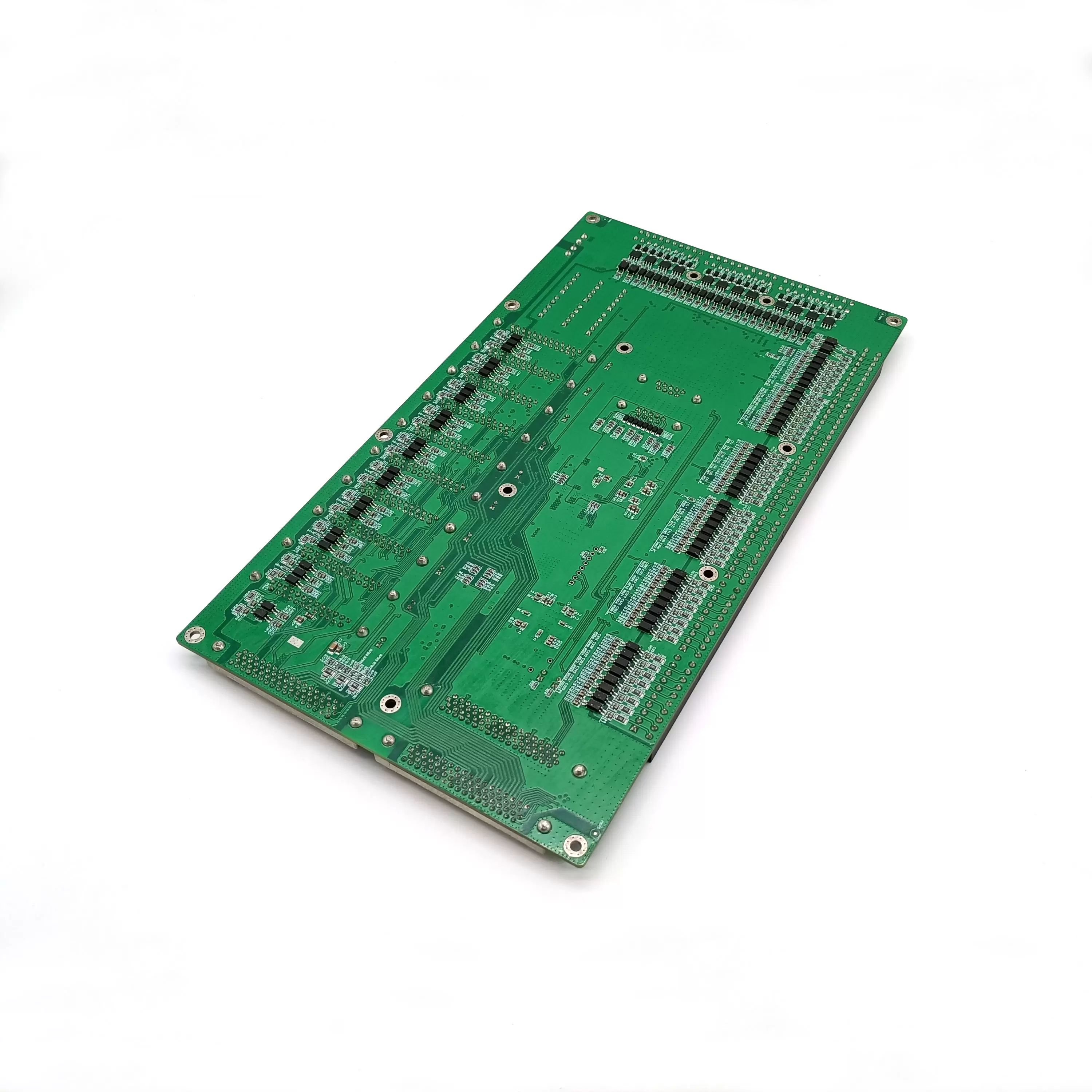

At BENLIDA, our PCB Assembly for LED Dashboard Driver solutions are built with long-term operation in mind. Whether used in automotive dashboards, industrial panels, or display systems, each board is manufactured to maintain stable electrical performance under continuous use.
| 鈻 Material: | FR-4 TG150 |
| 鈻 Board Thickness: | 1.6mm |
| 鈻 Layers: | 2 |
| 鈻 Copper Thickness: | 1OZ |
| 鈻 Surface Treatment: | Lead Free-HASL |
| 鈻 Solder Mask: | Green |
| 鈻 Silkscreen: | White |
When it comes to PCB Assembly for LED Dashboard Driver applications, consistency and reliability are critical. These circuit boards are responsible for controlling LED brightness, signal response, and overall display stability, which means even small defects can lead to visible performance issues.
From prototyping to full-scale production, we ensure that every PCB Assembly for LED Dashboard Driver meets strict quality standards and delivers dependable results in real-world conditions.
A well-designed PCB Assembly for the LED Dashboard Driver is widely used in systems that rely on clear and stable LED output. In automotive dashboards, these assemblies manage indicator lights, display panels, and backlighting systems, all of which must remain consistent over time.
In industrial control environments, a PCB Assembly for the LED Dashboard Driver ensures that LED indicators accurately reflect system status. Stability is especially important here, as fluctuations in signal or brightness can affect monitoring and decision-making.
Display systems in commercial settings also depend on reliable LED driver boards. A properly manufactured PCB Assembly for the LED Dashboard Driver helps maintain uniform brightness and prevents flickering, ensuring a clear visual experience.
The performance of a PCB Assembly for an LED Dashboard Driver depends heavily on how well it handles current and heat. Stable current output is essential to maintain consistent LED brightness. If the current is not properly controlled, the result is often uneven lighting or flickering.
Thermal performance is another key factor. A high-quality PCB Assembly for an LED Dashboard Driver must dissipate heat efficiently to prevent damage to both the board and the LED components. Over time, poor heat management can significantly reduce lifespan.
Signal integrity also plays a role. Inaccurate signal transmission within a PCB Assembly for the LED Dashboard Driver can lead to delayed response or unstable display behavior. Precision during assembly helps minimize these risks.
Producing a reliable PCB Assembly for the LED Dashboard Driver requires a controlled and consistent manufacturing process. It begins with accurate solder paste application, which ensures that each component forms a strong electrical connection.
Component placement is carried out using precision equipment to maintain alignment and consistency. For dense layouts commonly found in PCB Assembly for LED Dashboard Driver designs, accuracy at this stage is essential.
Reflow soldering is then used to create durable connections. Afterward, inspection processes are applied to verify quality. Both visual inspection and advanced detection methods are used to ensure that every PCB Assembly for the LED Dashboard Driver meets required standards before shipment.
Material selection directly affects the durability of a PCB Assembly for an LED Dashboard Driver. FR-4 TG150 is used for its thermal resistance and insulation properties, making it suitable for LED applications where heat and current must be balanced.
The 1.6mm board thickness provides structural stability, while the 2-layer design keeps the assembly efficient and cost-effective. A 1oz copper thickness supports stable current flow, which is essential for any PCB Assembly for the LED Dashboard Driver.
The Lead-Free HASL surface finish ensures reliable soldering performance, and the green solder mask with white silkscreen improves visibility during assembly and maintenance.
In many cases, the reliability of a PCB Assembly for an LED Dashboard Driver is determined by manufacturing quality rather than design alone. Even small inconsistencies in soldering or alignment can affect long-term performance.
A properly manufactured PCB Assembly for the LED Dashboard Driver reduces the risk of failure by ensuring stable electrical connections and consistent performance. Over time, this leads to improved durability and fewer maintenance issues.
For end users, this translates into better reliability, especially in systems where LED indicators or displays play a critical role.
At BENLIDA, we treat every PCB Assembly for the LED Dashboard Driver project as a long-term collaboration. Different applications may require adjustments in layout, materials, or assembly techniques, and we work closely with customers to meet those needs.
Our production capabilities support both small and large orders, ensuring flexibility without compromising quality. Each PCB Assembly for the LED Dashboard Driver is produced under consistent standards, regardless of volume.
What is special about PCB Assembly for LED Dashboard Driver compared to standard PCBs?
A PCB Assembly for an LED Dashboard Driver is designed to handle continuous current and heat, ensuring stable LED performance.
Can PCB Assembly for LED Dashboard Driver be customized?
Yes, each PCB Assembly for the LED Dashboard Driver can be tailored based on design and application requirements.
How long does PCB Assembly for LED Dashboard Driver production take?
Prototype production is usually completed within a few days, while larger orders depend on quantity.
