Why Heavy Copper PCB Delivers Better Durability in Harsh Environments

Heavy Copper PCB technology gives electronic devices superior durability in harsh environments. This advantage comes from the board’s increased mechanical strength, excellent thermal management, and ability to handle high current loads. Engineers define a heavy copper PCB by its copper thickness, which measures at least 3 ounces per square foot. These boards appear in many demanding applications where reliability matters most:

●Refrigerators and freezers use them for stable power delivery.●Air conditioners rely on them for reliable cooling performance.

●Washing machines benefit from their long-term durability.

●Microwaves and ovens use them to manage high-power heating elements.

●Power tools depend on them for safe, high-current operation.

●Military systems, automotive electronics, and renewable energy installations also trust heavy copper PCBs for mission-critical performance.

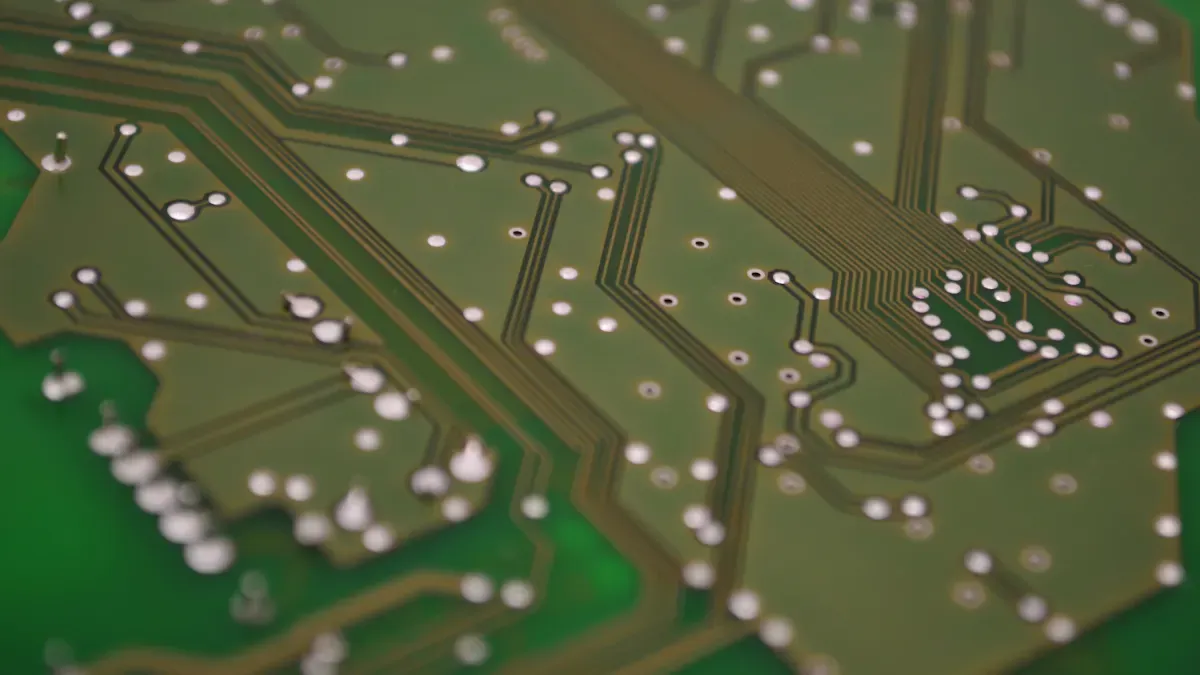

What Is a Heavy Copper PCB

Heavy Copper PCB technology stands out in the electronics industry for its ability to handle demanding environments. This type of printed circuit board uses copper layers with a thickness of at least 3 ounces per square foot (oz/ft²), which equals about 105 micrometers. Engineers often select these boards for applications that require high durability and reliability.

Key Features

Heavy Copper PCB offers several unique features that set it apart from standard boards. These features make it a preferred choice for high-power and industrial applications.

Copper Thickness Standards

●Heavy copper PCBs use copper thickness greater than 3 oz (105 µm) per layer.

●Manufacturers measure copper thickness using several methods:

●Cross-sectioning (metallographic analysis) provides the most accurate results by examining a cut sample.

●X-ray fluorescence (XRF) offers a non-destructive way to measure surface copper plating.

●Micro-resistance measurement estimates the average thickness by checking the electrical resistance.

●Eddy current measurement works as a non-contact method for surface layers.

●Weight difference (gravimetric analysis) calculates copper weight by comparing before and after etching.

●Chemical etching and coulometric methods give precise results in laboratory settings.

●Optical and image-based systems allow for quick visualization and measurement.

●Ultrasonic and laser techniques provide non-contact options for specific cases.

Material Options

Manufacturers use a variety of materials to build heavy copper PCBs. FR-4 remains the most common base material due to its balance of cost and performance. For applications that demand higher thermal stability, engineers may choose polyimide or ceramic substrates. These materials help the board maintain its integrity under extreme temperatures and mechanical stress.

Comparison With Standard PCBs

Heavy copper PCBs differ from standard PCBs in several important ways. These differences impact both electrical and mechanical performance.

Electrical and Mechanical Differences

●Mechanical strength increases with thicker copper layers, making heavy copper PCBs more durable under physical stress.

●These boards provide excellent thermal management, which means they dissipate heat more efficiently and reduce the risk of overheating.

●Heavy copper PCBs can handle much higher currents, often up to 20A or more, compared to the 1 oz to 3 oz copper thickness in standard boards.

●The manufacturing process for heavy copper PCBs is more complex, requiring special techniques to ensure quality and reliability.

●Enhanced durability allows these boards to withstand both thermal and physical stress, which is essential in high-power and industrial environments.

Note: Heavy copper PCBs play a critical role in applications where standard PCBs would fail due to heat, current, or mechanical demands.

Mechanical Strength Benefits

Enhanced Durability

Heavy copper PCBs stand out for their exceptional mechanical strength. This strength plays a vital role in ensuring that electronic devices continue to function reliably, even in environments where physical stress is common. Engineers often select these boards for applications that demand long-term durability and resistance to damage.

Resistance to Warping

Warping can cause circuit boards to fail, especially when exposed to high temperatures or mechanical pressure. Heavy copper PCBs resist warping much better than standard boards. The thick copper layers provide a rigid structure that maintains its shape, even when subjected to repeated heating and cooling cycles. This rigidity helps prevent cracks and breaks in the board, which can interrupt electrical connections and lead to device failure.

Vibration and Shock Endurance

Many industrial and automotive systems operate in environments where vibration and shock are unavoidable. Heavy copper PCBs offer increased resilience against these forces. The added copper thickness strengthens the board, making it less likely to crack or delaminate when exposed to sudden impacts or continuous vibration. Devices that use these boards can withstand rough handling, transportation, and installation without losing performance.

Increased copper thickness in heavy copper PCBs provides several key advantages:

●It enhances current carrying capacity, allowing the board to handle higher electrical currents without overheating.

●It improves heat dissipation, which is crucial for maintaining durability in high-power applications.

●It increases mechanical strength, making the PCB more resilient to physical stresses such as vibrations and shocks.

Application Example: Industrial Systems

Industrial systems often require electronic components that can survive harsh conditions. Heavy copper PCBs meet this need by providing the mechanical strength necessary for reliable operation. The following table highlights several industries and applications that benefit from this technology:

These examples show how heavy copper PCBs support critical functions in sectors where reliability and durability are essential. Engineers trust these boards to deliver stable performance, even when exposed to constant vibration, temperature changes, and mechanical stress.

Superior Thermal Management

Heat Dissipation

Heavy Copper PCB technology improves heat dissipation in electronic devices. Engineers use copper foil that is much thicker than what appears in standard PCBs. Standard boards usually have copper thickness between 18 µm and 35 µm. Heavy copper boards start at 70 µm and can reach over 400 µm. This increased thickness allows the board to carry higher currents and manage heat more effectively. Devices with heavy copper boards stay cooler during operation, which helps prevent overheating and extends their lifespan. Thicker copper also lowers board impedance, supporting stable performance under high duty cycles. Manufacturers must balance copper thickness with cost and manufacturing complexity to meet application needs.

Managing Hotspots

Hotspots can damage sensitive components and reduce reliability. Heavy copper boards absorb heat from these components and spread it across the surface. This process prevents concentrated heat buildup and reduces the risk of thermal fatigue. Copper’s high thermal conductivity makes it ideal for this purpose. Engineers design these boards to improve heat spread and minimize hot spots, especially in high-power applications.

Devices that use heavy copper boards benefit from enhanced heat management and thermal stability. Thicker copper improves heat spread and reduces hot spots, which is crucial for maintaining stable performance under high power loads.

Thermal Vias and Layering

Thermal vias and layering techniques further improve heat dissipation. Engineers place thermal vias in areas with high heat generation. These vias transfer heat from the surface layer to inner layers or to a heat sink. Layering allows heat to move through multiple copper layers, increasing the board’s ability to handle large current densities and high power loads. This flexibility supports power distribution and bus architectures in demanding environments.

●Thicker copper and optimized structures reduce the risk of thermal fatigue.

●Heavy copper boards can handle large current densities, providing flexibility in design for power distribution.

Application Example: Electric Vehicles

Electric vehicles rely on heavy copper boards for efficient thermal management. These boards appear in several critical systems:

Heavy Copper PCB technology ensures that electric vehicle systems operate safely and reliably. These boards manage heat efficiently, support high current loads, and maintain performance in harsh conditions.

High Current-Carrying Capacity

Heavy Copper PCB technology enables electronic systems to operate safely and efficiently in high-power environments. Engineers rely on these boards to deliver consistent performance when devices require large amounts of electrical current. The thick copper layers found in these PCBs allow for greater current flow, which is essential for applications such as power converters, industrial equipment, and electric vehicles.

Power Density

Power density describes how much electrical power a circuit board can handle within a given area. Thick copper layers not only improve current handling but also enhance mechanical strength, allowing for compact designs in high-power applications without sacrificing reliability. Copper thicknesses from 2 oz to 20 oz enable heavy copper PCBs to handle large currents effectively, which is essential for maintaining power density in high-power applications. Thicker copper layers enhance current-carrying capacity and improve heat dissipation, which are critical factors in preventing overheating and ensuring reliability in high-power electronics.

Trace Width and Resistance

Engineers design wider traces in heavy copper PCBs to facilitate a more uniform current distribution. This approach minimizes the risk of hotspots that can lead to thermal damage. Thicker traces provide ample space for current flow, enabling the PCB to manage larger currents without excessive heat generation. The increased thickness of copper lowers electrical resistance, which is crucial for high-frequency applications. Lower resistance means less energy lost as heat, which improves efficiency and extends the lifespan of electronic devices.

Devices with heavy copper layers can operate at higher power levels without overheating. This advantage supports the development of compact, reliable systems for demanding environments.

Voltage Stability

Voltage stability plays a key role in maintaining the performance of power electronics. Heavy copper PCBs help stabilize voltage by reducing resistance across traces. Stable voltage ensures that sensitive components receive consistent power, which prevents malfunctions and extends device life. Engineers often select these boards for systems that require precise voltage regulation, such as industrial power supplies and renewable energy inverters.

Application Example: Power Electronics

Power electronics rely on heavy copper PCBs for high current-carrying capacity and reliable operation. The following table highlights several applications where these boards make a difference:

●High-power solar inverters

●Industrial equipment, such as heavy machinery

●High-power devices, including large LED systems

●Electric Vehicle and Charging Infrastructure

Heavy Copper PCB technology supports these applications by providing the current-carrying capacity and thermal management needed for safe, efficient operation. Engineers trust these boards to deliver stable performance in environments where standard PCBs would fail.

Reliability in Harsh Environments

Heavy Copper PCB technology maintains performance in extreme conditions. Engineers design these boards to withstand thermal, mechanical, and environmental stress. Mission-critical sectors depend on this reliability for safe and consistent operation.

Thermal Cycling Endurance

Thermal cycling describes the repeated heating and cooling that occurs in many electronic systems. Standard PCBs often struggle with these cycles. Heavy copper boards manage these stresses more effectively.

●Copper expands less than resin systems, which reduces the risk of cracks.

●The hardness of copper gives the board exceptional structural integrity.

●Boards stay stable through repeated thermal cycles.

●High mechanical strength prevents warping and delamination.

●Larger current-carrying capabilities support demanding applications.

●Lower I2R losses improve efficiency and reduce heat buildup.

●Engineers can combine heavy and standard circuits on a single board, which reduces product size.

Lamination Quality

Lamination quality plays a key role in thermal cycling endurance. Manufacturers use advanced lamination techniques to bond copper layers securely. This process prevents separation between layers during temperature changes. High-quality lamination ensures that the board maintains its structure and electrical connections. Engineers often select boards with superior lamination for systems exposed to frequent temperature shifts.

Lamination quality determines how well a PCB resists failure during thermal cycling. Boards with strong lamination deliver reliable performance in harsh environments.

Corrosion Resistance

Corrosion can damage circuit boards and cause electrical failures. Heavy copper boards resist corrosion better than standard boards. Engineers select materials and finishes that protect the copper from moisture, chemicals, and other environmental hazards.

●Copper's hardness provides a strong barrier against corrosion.

●Surface finishes shield the copper from oxidation and chemical attack.

●Boards maintain performance even in humid or corrosive environments.

Surface Finishes

Surface finishes protect the copper layers from corrosion and wear. Manufacturers apply finishes such as HASL (Hot Air Solder Leveling), ENIG (Electroless Nickel Immersion Gold), and OSP (Organic Solderability Preservative). These finishes extend the life of the board and ensure reliable electrical connections.

Surface finishes play a vital role in corrosion resistance. Engineers choose finishes based on the environment and application requirements.

Application Example: Aerospace & Defense

Aerospace and defense systems require boards that operate reliably in extreme conditions. These systems face low temperatures at high altitudes and intense vibrations during launch. Engineers use thick PCBs to ensure durability and performance.

●Flight control systems depend on stable boards for safe operation.

●Radar equipment uses heavy copper boards to handle high currents and resist vibration.

●Satellite communications rely on durable boards for consistent signal transmission.

These applications demand reliability. Heavy copper boards deliver the strength and stability needed for mission-critical operations.

Aerospace and defense sectors trust heavy copper boards for their ability to withstand harsh environments. The durability of these boards supports safe and reliable performance in demanding situations.

Key Applications for Heavy Copper PCB

Automotive Electronics

Automotive systems demand high reliability and durability. Heavy Copper PCB technology meets these requirements by providing strong thermal management and mechanical strength. Engineers use these boards in battery management systems, motor controllers, and charging circuits. Thicker copper layers help manage high junction temperatures, often exceeding 125°C, which are common in automotive environments. The increased copper thickness also reinforces the board, reducing fatigue in traces and vias caused by constant vibration. This structural strength leads to fewer field failures and longer vehicle lifespans.

Key benefits in automotive electronics include:

●Superior heat dissipation prevents hot spots and protects sensitive components.

●Enhanced durability resists mechanical stress, vibration, and thermal cycling.

●Long-term reliability reduces maintenance and downtime.

●Essential for high-current applications such as electric vehicle batteries and fast-charging systems.

Automotive manufacturers rely on these features to meet strict quality standards and ensure safe operation in harsh conditions.

Industrial Automation

Industrial automation systems operate under continuous electrical and thermal stress. Heavy Copper PCB solutions play a vital role in ensuring precise control and efficient operation of machinery and robotics. These boards handle high-voltage power supplies and support demanding power conversion tasks.

●Engineers select these boards for their ability to withstand vibration and mechanical shock.

●The enhanced power handling capabilities make them ideal for motor drives, welding machines, and uninterruptible power supplies (UPS).

●Reliable performance under harsh conditions helps reduce equipment downtime.

Industrial equipment often operates continuously under high electrical and thermal stress. Heavy Copper PCB technology ensures that control systems and power modules remain stable and efficient, even in challenging factory environments.

Renewable Energy

Renewable energy systems, such as solar and wind power, require circuit boards that can handle continuous high power and outdoor exposure. Heavy Copper PCB designs offer higher current-carrying capacity and better thermal dissipation, which are crucial for solar inverters and battery storage systems. The increased mechanical strength of these boards supports durability in harsh weather and fluctuating temperatures.

●Higher current capacity enables efficient energy conversion and storage.

●Improved thermal management prevents overheating during peak operation.

●Stronger boards reduce the need for multiple layers, allowing for more compact and cost-effective designs.

●Enhanced reliability ensures long-term performance in remote or outdoor installations.

These application areas highlight the versatility and reliability of Heavy Copper PCB technology in supporting modern electronics across demanding industries.

Medical and Military

Heavy copper PCBs play a vital role in medical and military electronics. Engineers choose these boards for devices that demand high reliability and performance. Medical equipment often operates in environments where failure can risk patient safety. Military systems require electronics that withstand extreme conditions and deliver consistent results.

Medical devices use heavy copper PCBs in imaging systems, diagnostic machines, and life-support equipment. These boards support high-power density and ensure stable operation. Engineers design them to handle large currents and dissipate heat efficiently. The thick copper layers act as heat sinks, protecting sensitive components from overheating. This feature helps maintain accuracy in devices such as MRI scanners and CT machines.

Military electronics rely on heavy copper PCBs for durability and endurance. Radar systems, communication devices, and control modules must survive harsh environments. The added copper thickness provides mechanical strength. Boards resist vibration, shock, and thermal cycling. Soldiers depend on these systems during missions, so reliability becomes critical.

Heavy copper PCBs reduce the risk of circuit failure. Lower resistance and better heat distribution minimize overheating and current overloads. Devices operate safely even under heavy loads.

The following table highlights the main benefits of heavy copper PCBs in medical and military electronics:

Medical and military applications often require compact designs with high power density. Heavy copper PCBs allow engineers to build smaller devices without sacrificing performance. These boards support advanced features, such as rapid data processing and real-time monitoring.

●Medical imaging systems benefit from stable voltage and efficient heat dissipation.

●Military radios and radar equipment rely on mechanical strength to resist damage during transport and operation.

●Life-support devices use heavy copper PCBs to ensure continuous operation and patient safety.

Engineers select surface finishes that protect copper layers from corrosion. Devices must operate in humid, dusty, or chemically aggressive environments. Finishes such as ENIG and OSP extend board life and maintain electrical connections.

Heavy copper PCBs deliver unmatched reliability in medical and military electronics. They support high-power applications, resist physical and thermal stress, and reduce maintenance costs. Hospitals and defense organizations trust these boards to keep critical systems running.

Design and Manufacturing Tips

Choosing Copper Thickness

Selecting the right copper thickness is a key decision in heavy copper PCB design. Engineers consider several factors to ensure the board meets performance and durability requirements:

●Mechanical Strength: Thicker copper increases the stiffness and durability of the PCB. This feature is important for industrial and automotive applications where resistance to bending and physical damage matters. However, increased thickness reduces flexibility, which may not suit all designs.

●Flexibility: Thinner copper allows the board to bend more easily. Wearable and foldable electronics often require copper thickness between 9 and 18 microns. In contrast, heavy copper (35–70 microns or more) creates a stiffer board that needs a larger bend radius.

●Thermal Management: Thicker copper acts as a heat sink, improving heat dissipation and reducing hot spot temperatures by up to 30%. This benefit is vital for high-power designs such as motor controllers and avionics.

●Cost: More copper increases manufacturing costs and complexity. Engineers must balance performance needs with budget constraints.

●Fine-Pitch Designs: Thin copper (such as 0.5 oz) works best for PCBs with small traces and tight spacing. This approach helps maintain signal integrity and makes etching easier.

●Application-Specific Needs: Consumer electronics often use 1 oz copper for a balance of cost and performance. High-power applications may require 2 oz or more.

●Manufacturer Consultation: Early communication with PCB manufacturers helps confirm capabilities and avoid costly errors. Heavy copper PCBs need special processes, so collaboration is essential.

Tip: Always match copper thickness to the application’s electrical, thermal, and mechanical demands.

Optimizing Layout

A well-optimized PCB layout improves both performance and reliability. Engineers use several strategies to achieve the best results:

●Copper Trace Width and Thickness: Wider traces reduce resistance and support larger currents. Increased copper thickness further boosts current-carrying capacity.

●Copper Pour and Planes: These features distribute current evenly and enhance thermal dissipation, lowering the risk of overheating.

●Thermal Management: Heat sinks and thermal vias help manage heat from high currents. Proper placement of these elements keeps components cool.

●PCB Substrate Material: High thermal conductivity materials improve overall board performance.

●Through-Hole Technology (THT): THT provides robust connections and handles larger currents better than surface-mounted components.

●Soldering Techniques: Specialized soldering ensures reliable, high-current connections.

●Design Considerations: Shorter trace lengths and minimized resistance lead to more efficient layouts.

Note: Careful layout design prevents hot spots and voltage drops, supporting long-term reliability.

Cost vs. Reliability

Engineers often weigh the higher cost of heavy copper PCBs against their superior reliability. The following table highlights key differences:

Heavy copper PCBs offer lower voltage drops and better heat spreading in high-current environments. They resist conductor peeling and withstand more thermal cycles, which increases reliability in critical applications. The added mechanical strength also protects against bending and vibration.

Engineers should consider the total cost of ownership. While heavy copper PCBs cost more upfront, their durability and reliability can reduce maintenance and replacement expenses over time.

Heavy copper PCBs deliver unmatched durability and reliability in harsh environments. Thicker copper layers enhance mechanical strength, resist warping, and support high current without overheating. Superior thermal management helps prevent hot spots and extends device lifespan. These features make heavy copper PCBs ideal for demanding fields, as shown below:

●Carefully weigh thermal, electrical, and mechanical needs.

●Consult PCB manufacturers for tailored solutions.

FAQ

What defines a heavy copper PCB?

A heavy copper PCB uses copper layers with a thickness of at least 3 ounces per square foot. This extra thickness gives the board greater strength and allows it to handle higher currents.

Why do engineers choose heavy copper PCBs for harsh environments?

Engineers select heavy copper PCBs because they resist warping, manage heat well, and carry high currents. These features help devices survive in tough conditions like factories, vehicles, and outdoor installations.

Can heavy copper PCBs reduce the need for extra cooling?

Yes. Heavy copper PCBs spread heat more efficiently than standard boards. This improved heat dissipation often reduces or eliminates the need for additional cooling systems.

Are heavy copper PCBs more expensive than standard PCBs?

Heavy copper PCBs usually cost more due to thicker copper layers and complex manufacturing. However, their durability and reliability can lower maintenance and replacement costs over time.

What industries use heavy copper PCBs most often?

Industries such as automotive, aerospace, renewable energy, industrial automation, and military electronics rely on heavy copper PCBs. These sectors demand high reliability and performance in challenging environments.

How does copper thickness affect PCB design?

Thicker copper increases current-carrying capacity and mechanical strength. Designers must adjust trace width and spacing to handle higher currents and ensure safe operation.

Do heavy copper PCBs support multilayer designs?

Yes. Manufacturers can build heavy copper PCBs with multiple layers. This approach allows for complex circuits and better power distribution in advanced electronic systems.
