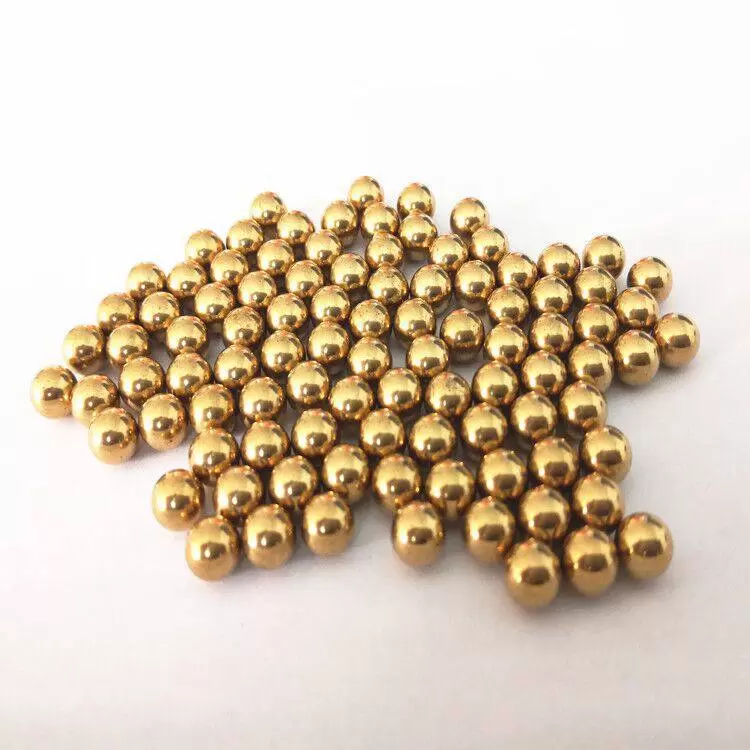

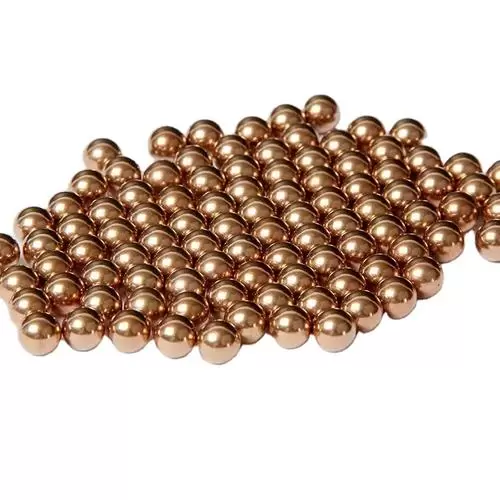

Why choose phosphorus copper balls for PCB electroplating process?

In copper plating processes for PCB manufacturing (especially acidic sulfate copper plating), phosphorus copper anodes (usually spherical or angular) are almost the sole choice, while pure copper anodes are rarely used. The reasons behind this choice involve considerations of electrochemistry, process control, and the final plating quality.

Briefly saying: Phosphorus copper balls could generate a unique "anodic film" on the anode surface, to achieve controlled and uniform dissolution, thus ensure the stability of the plating solution and the high quality of the plating layer. Pure copper anodes, on the other hand, might lead to catastrophic dissolution and instability.

Core reason: The regulating role of phosphorus.

Pure copper anodes have two fundamental defects in the electroplating process, and low percent of phosphorus (typically 0.04%-0.065%) could avoid these issues.

I. Inhibiting Chemical Dissolution and Formation of "Anode Sludge"

1. Problems with Pure Copper Anodes:

● In acidic plating solutions which contains oxygen, pure copper undergoes normal electrochemical dissolution but also vigorous chemical dissolution: Cu + ½O₂ + 2H⁺ → Cu²⁺ + H₂O.

● Chemical dissolution produces a large amount of loose, granular copper powder. This copper powder detaches from the anode, forming anode sludge, which remains suspended in the plating solution.

● Hazards: Anode sludge contaminates the plating solution and adheres to the PCB board surface, causing fatal defects such as burrs, nodules, and roughness in the plating layer, which is disastrous for delicate circuits on PCBs.

2. Solution with Phosphorus Copper:

● Phosphorus reacts with copper to form a dense, conductive black copper phosphide anode film on the anode surface. This film effectively blocks direct contact between copper and the plating solution, almost completely inhibiting harmful chemical dissolution.

● Anode dissolution primarily occurs electrochemically: Cu - 2e⁻ → Cu²⁺. The process is uniform, controllable, and does not produce copper powder.

II. Promoting Uniform Dissolution and Preventing Anode Passivation

1. Problems with Pure Copper Anodes:

● Under high current densities, a dense, non-conductive cuprous oxide film could form on the surface of pure copper anodes easily, it leads to anode passivation.

● Harmful effects: Anode resistance increases sharply, tank voltage rises, effective operating current decreases, and in severe cases, the electroplating reaction stops. Simultaneously, uneven dissolution leads to anode shape distortion and uneven consumption.

2. Solution with Phosphorus Copper:

● The addition of phosphorus could promote the formation of the aforementioned black copper phosphide film. This film is conductive and porous, allowing copper ions to pass through smoothly.

● It preferentially forms over the cuprous oxide film, thus prevent anode passivation and ensure uniform dissolution of the anode, across a wide current density range, maintain it's regular shape.

Comprehensive Advantages of Phosphorus Copper Balls

Based on the core mechanisms as described above, phosphorus copper balls offer irreplaceable advantages for PCB electroplating:

1. Highly Pure and Stable Plating Solution: No anode sludge contamination, reduced burden on the plating solution filtration system, slow impurity accumulation, excellent chemical stability, and long service life.

2. Superior Plating Quality:

● Fine and Uniform Crystallization: Because the copper ions received on the cathode (PCB) originate from a uniformly dissolved anode, there is no particle interference.

● Good Physical Properties: Good plating ductility and low internal stress, beneficial for subsequent processing and ensuring long-term reliability.

● Excellent Distribution Capability: With additives, excellent deep plating and uniform plating capabilities can be achieved, meeting the deep-hole plating requirements of HDI boards.

3. Simplified Process Control and High Production Yield: Stable and predictable anode behavior and a wide process window would reduce operational difficulty and sensitivity to current density fluctuations, directly improving product yield.

4. Economic Efficiency: Although the unit price of phosphorus copper balls is higher than pure copper, the comprehensive benefits they bring, such as high yield, low maintenance costs (reduced filtration and impurity treatment), and long plating bath life, make their total cost far lower than pure copper balls.

Considerations for Choosing Phosphorus Copper Balls

1. Phosphorus Content: This is a key parameter. "Low phosphorus" anodes (P: 0.04-0.065%) are used for acidic sulfate copper plating and are the standard in the PCB industry. "High phosphorus" anodes (P: 0.1-0.3%) are typically used for other copper plating systems.

2. Phosphorus Distribution Uniformity: It must be uniform; otherwise, uneven anode film will lead to abnormal local dissolution.

3. Anode Bag: Even when using phosphor bronze balls, a dense anode bag (such as polypropylene) is still required as a last line of defense to intercept any possible trace particles.

Choosing phosphorus copper balls means choosing a "mechanism of controlled anode dissolution." By introducing small amounts of phosphorus, it transforms the anode from an "unpredictable source of contamination" into a "stable, clean source of copper ions." This is one of the cornerstone technologies for achieving high uniformity and high reliability electroplating in modern PCBs, especially HDI PCB(high-density interconnect printed circuit boards). Without phosphorus copper balls, today's high-end multilayer PCBs and miniaturized electronic devices would be difficult to achieve.
